SALE!

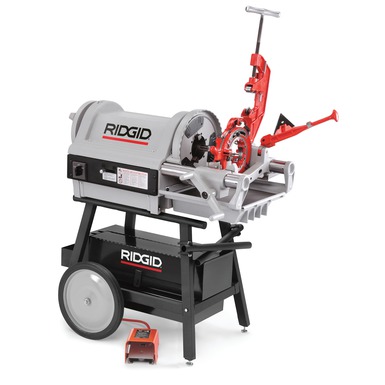

Model 1224 Threading Machine

$2,600.00

Specifications
Nominal Pipe Capacity 1/4″-2″ (6mm-100mm) @ 36 RPM, 2-1/2″-4″ (65mm-100mm) @ 12 RPM, 4″-6″ (100mm-150mm) with 161 Geared Threader.
Bolt Capacity 1/4″-2″ (6mm-50mm).
Motor Control Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Gear Box Two-speed gear box with a 3:1 ratio.
Chuck Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device Cam action.
Oiling Pump Self-priming, gerotor-type, automatic-reversing, constant-flow.
Oiling Through die head

Category:

Description

Features

An induction motor helps minimize noise.
A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
1/4″-2″ Universal Die Head; 2 1/2″-4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
Constant and proper lubrication of dies and workpiece with through-head oiling.
